Pile Drivers

Big selection of high quality pile drivers, side grip vibro pile drivers, excavator mounted pile drivers, & crane mounted pile drivers, all at discount prices. Includes 3 year warranty & free shipping in USA.

Pile Drivers , Side Grip Vibro Pile Drivers, Excavator & Crane Mounted Pile Drivers

Large selection of high-quality pile drivers & side grip vibro pile drivers, excavator & crane mounted pile drivers, all at discount prices, including a 3-year warranty and free shipping in the United States.

Perfect for demolition & excavating project.  We can customize a machine for your needs and budget, and make sure that you get the right pile driver at the best price with our price match guarantee program.

N

Low Price Guarantee

N

Free Shipping In the USA

N

3 Year Warranty

N

Large Selection

N

Knowledgeable, Friendly Help

N

Custom Solutions

N

Fast Shipping, Expert Support

Call toll free 877–219-1962

SIDE GRIP TYPE VIBRATORY HAMMERS

International Attachments carries a wide range of sheet pile drivers and vibro hammers, including the ESF B Series Vibro Sheet Pile Drivers.

We offer seven models for your needs and budget. Our vibratory hammers are designed to fit excavators from 8 to 50 ton.

These models drive piles up to 15 meters deep, even in hard ground conditions. Our fleet of vibratory hammers includes vibro hammers for excavators or cranes from just 1,200 pounds up to pile drivers that weigh 16,850 pounds. In stock and ready to deliver !

Contact International Attachments at 877–219-1962

Have a project you're interested in discussing with us?

We would love to help

Excavator Mounted Vibratory Pile Drivers

We have a large selection of high-quality excavator mounted pile drivers, all at discount prices, including a 3-year warranty and free shipping in the United States.

Perfect for demolition & excavating project. We can customize a machine for your needs and budget, and make sure that you get the right pile driver at the best price with our price match guarantee program.

Our excavator mounted vibratory hammers are attached easily to the excavator pump system and can be operated in a very short time. A line is a feeding line for hydromotor and B line is for clamp open action. Drain line is a connection from hydromotor oil leakage to excavator tank.

Also we offer our customers small power packs to operate without excavator oil supply displacement. All of the power packs have wireless or wire type remote control utility.

ESF1B Mini size vibratory hammer

ESF1 model micro vibro hammer is a very unique and special for small size pile driving applications. This model is attached to Back Hoe loaders and mini loaders.



  • Total weight with clamp 375kg
  • Speed 3,200 rpm
  • Centrifugal Force 81 kn
  • Pullng force30 kn
  • Push down 20 kn
  • Excavator class 8-10 tons
  • Dimensions Height 1,096 mm, width 451 mm, length 700 mm

ESF 03B Mini Excavator / Backhoe class.

Micro Pile Driver/ Marine Applications. SF03 is the smallest vibratory hammer in the world. Available as excavator mounted or suspended working of a small 30 lt/min. power pack.

  • Total weight with clamp 160 kg
  • Speed 3,000 rpm
  • Centrifugal Force 33 kn
  • Pullng force 15 kn
  • Push down 15 kn
  • Excavator class 5 tons
  • Dimensions Height 790 mm, width 191 mm, length 505 mm

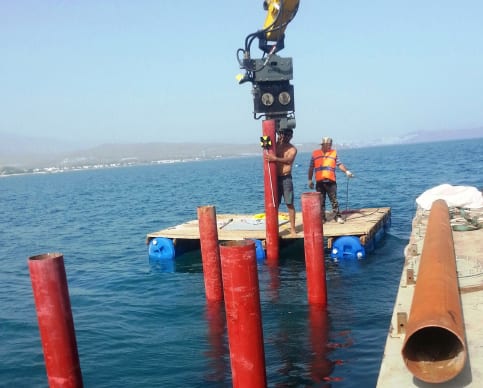

ESF 2B

ESF2 model vibro hammer is a very unique and special for small size pile driving applica-tions. This model is attached to 14 tons class excavators.



  • Total weight with clamp 610 kg
  • Speed 3,200 rpm
  • Centrifugal Force 258 kn
  • Pullng force 60 kn
  • Push down 40 kn
  • Excavator class 5 tons
  • Dimensions Height 1,215 mm, width 511 mm, length 770 mm

ESF4B Excavator Mounted Hydraulic Vibratory Hammer

ESF4 model vibro hammer is attached to 18/20 tons class excavators. In normal soil conditions and low weight materials enough to drive posts and sheet piles up to 6 mt.



  • Total weight with clamp 650 kg
  • Speed 3,750 rpm
  • Centrifugal Force 322 kn
  • Pulling force 60 kn
  • Push down 40 kn
  • Excavator class 15-20 tons
  • Dimensions Height 1,215 mm, width 511 mm, length 770 mm

Have a project you're interested in discussing with us?

We would love to help

Crane Mounted Vibratory Pile Drivers

Crane mounted vibratory hammers are designed for long sheet pile or long steel tubes driving projects where excavator booms are not long enough. For instance , it is not possible to drive 25 meter or longer sheet piles by excavator mounted type vibratory hammers.

Crane mounted vibratory hammers are operated by seperate hydraulic power packs as there is no hydraulic oil supply in cranes.  Crane mounted vibratory hammers are used in big bridge , sea port projects. These types are also used in stone colomn projects. Because of the high level of centrifugal force, crane mounted vibratory hammers are preferred in hard soil conditions.

ESF 14 Crane Mounted Hydraulic Vibratory Hammer

ESF 14 crane mounted high frequency vibratory hammer with gear box cooling system is designed for sheet pile or steel tube driving projects in hard soil conditions. ESF14 HF isoperated by PS350 Power Pack. The dimensions are designed for easy transport.

1xFCM90 Sheet Pile and 2xFCM60 pipe clamp can be mounted.

  • Total weight without clamp 3,750 kg
  • Speed 2,200 rpm
  • Centrifugal Force 743 kn
  • Pullng force 320 kn
  • Dimensions Height 2,185 mm, width 405 mm, length 1,875 mm



ESF 20 Crane Mounted Hydraulic Vibratory Hammer

ESF 20 is Normal Frequency vibratory hammer with gear box cooling system as standard. As it is Normal Frequency it is operated by PS300 power pack. The FCM100 sheet pile clamp and 2xPCM60 pipe clamp can be mounted.

  • Total weight without clamp 3,750 kg
  • Speed 1,600 rpm
  • Centrifugal Force 562 kn
  • Pullng force 320 kn
  • Dimensions Height 2,325 mm, width 522 mm, length 1,875 mm

ESF 23 Crane Mounted Hydraulic Vibratory Hammer

ESF 23 is Normal Frequency vibratory hammer with gear box cooling system as standard. As it is Normal Frequency it is operated by PS350 power pack. The FCM100 sheet pile clamp and 2xPCM60 pipe clamp can be mounted.



  • Total weight with clamp 610 kg
  • Speed 3,200 rpm
  • Centrifugal Force 258 kn
  • Pullng force 60 kn
  • Push down 40 kn
  • Excavator class 5 tons
  • Dimensions Height 1,215 mm, width 511 mm, length 770 mm

ESF 55 Crane Mounted Hydraulic Vibratory Hammer

ESF 55 is Normal Frequency vibratory hammer with gear box cooling system as standard.

As it is Normal Frequency it is operated by PS600 power pack. The FCM180 sheet pile clamp and 2xPCM100 pipe clamp can be mounted.

  • Total weight without clamp 5,800 kg
  • Speed 1,600 rpm
  • Centrifugal Force 1,545 kn
  • Pullng force 800 kn
  • Dimensions Height 2,722 mm, width 797 mm, length 3,015 mm



ESF 55C Crane Mounted Vibratory Hammer

ESF 55C is High Frequency vibratory hammer with gear box cooling system as standard. As it is High Frequency it is operated by PS600 power pack. The FCM180 sheet pile clamp and 2xPCM100 pipe clamp can be mounted. This model is specially designed for hard-clay ground formations.

  • Total weight without clamp 8,100 kg
  • Speed 1,900 rpm
  • Centrifugal Force 1,948 kn
  • Pullng force 800 kn
  • Dimensions Height 27,225 mm, width 797  mm, length 3,015 mm

ESF 88 Crane Mounted Hydraulic Vibratory Hammer

ESF 88 is Normal Frequency vibratory hammer with gear box cooling system as stan-dard. As it is Normal Frequency it is operated by PS800 power pack. The FCM200 sheet pile clamp and 2xPCM120 pipe clamp can be mounted. This model is preferred to drive long sheet piles or steel tubes in seaport or bridge const. projects.



  • Total weight without clamp 7,950kg
  • Speed 1,600 rpm
  • Centrifugal Force 2,190 kn
  • Pullng force 2,780 kn
  • Dimensions Height 2,714 mm, width 756 mm, length 2,897 mm

ESF 110 Crane Mounted Hydraulic Vibratory Hammer

ESF 110 is Normal Frequency vibratory hammer with gear box cooling system as stan-dard. As it is Normal Frequency it is operated by PS1000 power pack. The FCM250 sheet pile clamp and 2xPCM150 pipe clamp can be mounted. This model is preferred to drive long sheet piles or steel tubes in seaport or bridge const. projects.

  • Total weight without clamp 9,200 kg
  • Speed 1,600 rpm
  • Centrifugal Force 3,088 kn
  • Pullng force 3,000 kn
  • Dimensions Height 2,714 mm, width 756 mm, length 2,897 mm



ESF 2000C Crane Mounted Vibratory Hammer

ESF 200C is Normal Frequency vibratory hammer with gear box cooling system as standard. As it is Normal Fre-quency it is operated by PS1600 power pack. 4xPCM150 pipe clamp to be mounted. This model is preferred to drive long steel tubes in seaport or bridge const. projects. The special design and power of this model especially for Off-Shore Projects.This model can drive steel tubes with OD up to 2000mm in hard ground formations.

  • Total weight excl. clamp 19,700 kg
  • Speed 1,400 rpm
  • Centrifugal Force 4,540 kn
  • Pullng force 6,000 kn
  • Dimensions Height 3,548 mm, width 668  mm, length 3,408 mm

Hydraulic Power Packs

Our PS Series Power Packs not only for vibratory hammers but also for many different industrial applications like vessels and dam projects.
Our engineering team always design our PS Series power packs according to the transport dimensions internationally recognised.

Piled river for solar plant installations – Pile driver crawler mounted

Since the photovoltaic market has begun to take its first steps, IAI has immediately designed and built machines to perform the work of piling with precision and speed.

In order to better meet the needs of the market, today we offer highly advanced solutions.

Thanks to our unique “GPS machine control” system, we offer our customers the most advanced technology for maximum efficiency.



Have a project you're interested in discussing with us?

We would love to help

Diesel Hammer Pile Drivers

are used for piling machinery with two-stroke diesel engines. It has simple structure, be simple to operate and maitain, and high quality. It can be widely used for a variety of piles, including wooden pile, metal pile, prefabricated concrete pile, lime soil pile, concretepoured pile, and concrete tamped pile. These DD series guide rod diesel pile hammers are the ideal equipments for constructions of ports, docks, airports, bridges, water conservancies, highways and high-rise buildings, etc..As the widely used impulse type piling equipment, we have successfully developed full series guide rod diesel pile hammers. It has multiple patents, and its performance indicators reached the international advanced level. It will overall meet the requirements of various projects

DD series guide rod diesel pile hammer

  • DD series rod diesel pile hammer 25-35
  • Cylinder complex mass 2500kg
  • Max. cylinder stroke 2.5m
  • Impact frequency 35-50 Min-1
  • Max. energy 57.5Kj
  • Oil comsumption 10L/H
  • Force of explosion pile 968 KN
  • Suitable for driving pile 6000Kg
  • Reduction retion 22
  • Hammer mass 4200Kg
  • Guide distance 360/330Mm

D series aire-cooled diesel pile hammers

  • MODEL D180
  • Cylinder complex mass 18,000kg
  • Max. cylinder stroke 3m
  • Impact frequency 35-50 Min-1
  • Max. energy 540Kj
  • Oil comsumption 48L/H
  • Force of explosion pile 4510 KN
  • Suitable for driving pile 55,000Kg
  • Reduction retion 28
  • Hammer mass 34,800Kg
  • Guide distance 600Mm

Hydraulic walking pile driving frame

  • MODEL ZJB40
  • Diameter of leader column Ø426
  • Leader rated capacity 240KN
  • Leader support mode 3-Point support
  • Leader guide 330* Ø70
  • Leader inclination Forward tilt 9°, backward tilt 5°
  • Slope climbing capacity
  • Platform rotation angle 15°/time
  • Platform rotating speed [ – ]
  • Long bridge step pace 2m
  • Long bridge moving speed 4m
  • Short bridge step pace 0.8m
  • Short bridge moving speed 4m/min
  • Average ground pressure 0.035/0.045Mpa
  • Type of winch 2JM3-5
  • Hydraulic system motor power 22kW
  • Hydraulic system oil pressure 16Mpa
  • Total height 22-24.5m
  • Total weight 41 ton
  • Applicable pilling hammer max DD53 D50 DZ60KS
  • Applicable earth auger max. Ø400*18

Multi-functional Silent Piler

The Multi-functional silent piler designed and manufactured by IAI Equipment Manufacturing Co Ltd, is a new environment-friendly pile construction equipment with independent intellectual property rights. It is mainly used to carry out pile driving operation in pile foundation engineering. It adopts new construction method and has carried out reform in technology. It sets various functions in one and effectively solves the common problems of traditional pile equipment. It is a kind of piling driving equipment which meets the needs of society for infrastructure construction without vibratory, noise and environmental load. It can be applied to various geological and environment conditions and has been widely used all over the world.

The Multi-functional silent piler adopts full hydraulic drive and full automatic control. It has the advantages of no vibratory, no noise, small influence during engineering, small equipment volume make it convenient transfer to new field construction. It can also increase the water knife system and rotary digging system according to the different geological conditions. By replacing different models or fixtures, it can be applied to various pile types. Such as U Type steel sheet pile, Z Type Steel sheet pile, H Beam, Pipe Pile, Cement pile and so on.

The Multi-functional silent pilers of Zizhu now covers all specification models. The maximum pulling force can reach 150T ans.

Multi-functional Silent Piler

Silent Piler 400

Length/Width/Height ( Excluding Base ) = 83.5 x 44 x 96.4 inches

Weight ( Excluding base ) = 16,535 Lbs

Length/Width/Height of Counterforce base = 131.6 x 75.9 x 19.1 inches

Weight of Counterforce base = 6085 Lbs

Maximum pile driving force = 100 T

Silent Piler 600

Length/Width/Height ( Excluding Base ) = 98.9 x 52.1 x 103.1 inches

Weight ( Excluding base ) = 22,011 Lbs

Length/Width/Height of Counterforce base = 141.2 x 89.7 x 19.6 inches

Weight of Counterforce base = 7496 Lbs

Maximum pile driving force = 150 T

Silent Piler 700

Length/Width/Height ( Excluding Base ) = 155.5 x 53.9 x 111.3 inches

Weight ( Excluding base ) = 35,494 Lbs

Length/Width/Height of Counterforce base = 153.2 x 95.6 x 23.1 inches

Weight of Counterforce base = 8179 Lbs

Maximum pile driving force = 150 T

Pile drivers, side grip vibro pile drivers, excavator & crane mounted pile drivers

International Attachments carries a big selection of high quality pile drivers, side grip vibro pile drivers, excavator mounted pile drivers, & crane mounted pile drivers, all at discount prices. Includes 3 year warranty & free shipping in USA.

These models are highly versatile attachments and can drive a range of piles including Sheet Piles, Steel Tubes, Timber Piles and H-I Beams.

Safer and faster than traditional Pile Drivers on the market.

Contact International Attachments at 877–219-1962 for knowledgeable, friendly help and for a price quote.
